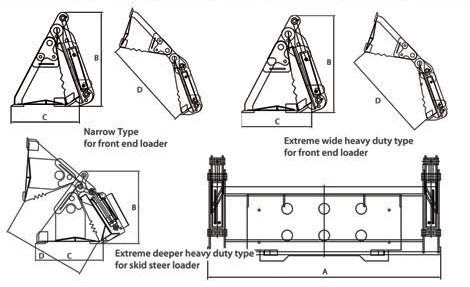

Narrow type
For front end loader of tractor

Installed hydraulic rams and material same as wide type 4in1 bucket, narrow type 4in1 bucket is small bucket capacity and reduce weight of it that east operating of front end loader on tractor.

Extreme wide heavy duty type
For front end loader of tractor

Extreme wide heavy duty type 4in1 bucket for front end loader of tractor is very powerful attachment.

It Is 30% bigger size than narrow type 4in 1 bucket to installed high horse power tractor line.

Extreme wide heavy duty 4in1 bucket have been designed to exceed the requirements of the agricultural Industry and, when used with the standard level lift end loader, have safety features to eliminate rollback, a condition that allows material to spill or fall over the rear of the bucket when it is filled. Extreme wide tyle 4in1 buckets are available in a number of sizes to enable a more compatible loader/tractor combination, ensuring you get the most from your loader.

• Buckets have high-quality cutting edges for excellent durability.
• The laser cut ends and hinges of the bucket have been cut from heavy high-grade plate to give maximum strength to the sides of the bucket.
• The bottom of the bucket has additinal formed plate with internal rib section for maximum strength in the moving half of the bucket.
• Extreme wide heavy duty 4in1 buckets can be fitted with ground-engaging teeth if required.

Extreme deeper heavy duty type
For skid steer loader

16mm(0.67inch), S45C High tensile steel has been used on both cutting edges.
It has excellent wear characteristics and allows grading with both edges with a top finish.

To allow the safe clamping of large objects saw tooth type teeth have been provided on each side of the bucket.

Each pin is fixed to ensure that wear is kept to a minimum.

All buckets are MIG welded for optimun strength and a smooth clean apperence.

The bucket hydraulic have the following features;

• a) Includes two high quality hydraulic rams(80(315inch),60(2.36 inch),50(1.97inch))
• b) Protective covers over rams to avoid damage.
• c) Hydraulic pipes supported by rubber suspension blocks.
• d) Hoses protected from damage and chafing by a protective outer textile shield.
