Bale Grapple Section
- Home>
- Product>
- Bale Grapple Section
- Heavy Duty Round Bale Grapple
- For easy handling and stacking of wrapped round bale silage and round bales of hay.
- By strong two cylinder, round bale grapple will hold the bale secure while transporting or stacking bales.
- It is easy to reverse out from the bale and this is also an advantage when the bales are to be stacked tightly. Rear hitch designed to match own machine.

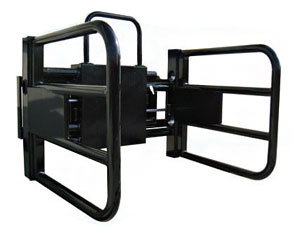

- Heavy Duty Square Bale Grapple
- This square bale grapple mounts to the front end loader and skid steer loader is especially designed to gently handle wrapped square bales and also dry and round bales.
- The square bale grapple comes complete with hydraulic cylinders, opens to 600mm(24inch) and over 1700mm(67inch).
- The square bale grapple is the ideal implement to handle both round and square bales a: is wool bales and similar packages.
- Our standard model is suitable for trSctors over 70hp.
Specification

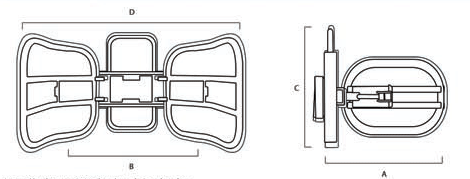

Heavy Duty Round Bale Grapple
| Model | Length (mm/inch) | Width (mm/inch) | Height (mm/inch) | Weight(kgs/Ibs) | Max. Opening (mm/inch) | Pressure(200Kgs/㎠) |
|---|---|---|---|---|---|---|
| GLRBG-210S | 1240/49 | 1710/67 | 1240/49 | 140/309 | 300/12~1600/63 | About 3.5ton |

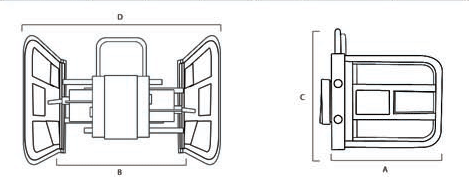

Heavy Duty Square Bale Grapple
| Model | Length (mm/inch) | Width (mm/inch) | Height (mm/inch) | Weight(kgs/Ibs) | Max. Opening (mm/inch) | Pressure(200Kgs/㎠) |
|---|---|---|---|---|---|---|
| GLSBG-200S | 1420/56 | 1450/57 | 1320/52 | 206/454 | 600/24~1700/67 | About 3.5ton |
Installed two ∮80 hydraulic cylinder
The entire bale section is available with either Euro quick release(ISO 23206), bobcat quick release system(SAE J2513) and various attachment dimension.
Also, Available for OEM quick system if you could provide own drawing.
A fully hydraulic hose kit including a male female 1/2 hydraulic quick coupling with cover and 1500mm(5ft) of hydraulic hose which shielded by textile hose cover.
