Grapple Fork Section
- Home>
- Product>
- Grapple Fork Section

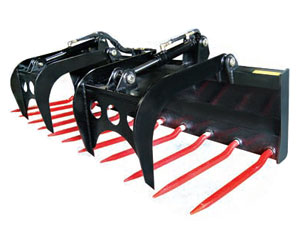

- Debris Grapple Fork
- te fork has Replaceable forged tines if you need to spare tine. Also, this le for k will provide designed to pick-up brush, manure, silage and other leaving the dirt
- in your working situation, we could provide various width from 1600-2163mm to operating and stronger.

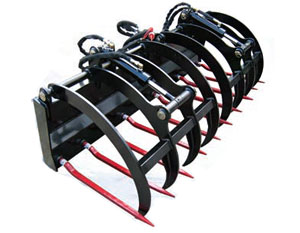

- Debris Grapple Fork(Round Wind Type)
- Having a fork style bottom, this attachment allows for clean and easy handling of this type of material.
- After it is driven into the silage face, the attachment can be crowded back like a conventional bale fodt.
- This attachment requires a third hydraulic control circuit to activate the grapple portion of the attachment
- All tines fit into a tapered sleeve and are removable.

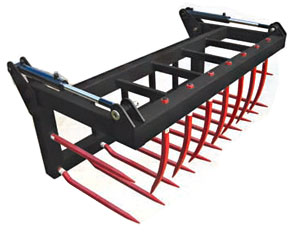

- Power Silage Grapple Fork
- The Power Silage Grapplefork has been designed to handle pit silage easily and safety. This attachment requires a third hydraulic control circuit to activate the grapple portion of the attachment.
- The tines are forced through the silage in a circular motion using minimal effort and ensuring an efficii j,. cut damping the material in the attachment
- .are spaced to ensure wastage from material falling through all tines fit into a tapered sleeve and are removable.
Specification

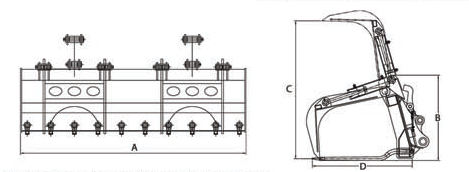

Debris Grapple Fork
| Model | Spear Type | No. of Spear | Width (mm/inch) |
Height (mm/inch) |
Grapple Open(mm/inch) | Spear Length(mm/inch) | Weight (Kgs/Ibs) |
|---|---|---|---|---|---|---|---|
| GLDGF-CⅠ-16 | Coners Ⅰ Cranked tine |
9 | 1600/63 | 677/27 | 1093/43 | 820/32 | 220/485 |
| GLDGF-CⅠ-18 | Coners Ⅰ Cranked tine |
10 | 1800/71 | 260/573 | |||
| GLDGF-CⅠ-21 | Coners Ⅰ Cranked tine |
11 | 2100/83 | 300/661 |
* Installed two ∮60 hydraulic cylinder.

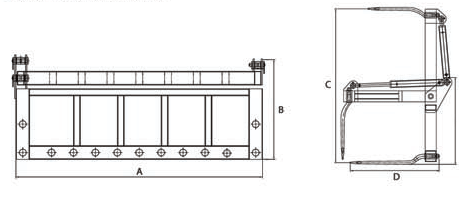

Power Silage Grapple Fork
| Model | Spear Type | No. of Spear | Width (mm/inch) |
Height (mm/inch) |
Grapple Open(mm/inch) | Spear Length(mm/inch) | Weight (Kgs/Ibs) |
|---|---|---|---|---|---|---|---|
| GLPSGF-CⅠ-16 | Coners Ⅰ Cranked tine(down) |
8 | 1600/63 | 786/31 | 1370/54 | 820/32 | 260/573 |
| Coners Ⅰ Cranked tine(up) |
6 | 680/27 | |||||
| Coners Ⅰ (side) |
4 | 810/32 | |||||
| GLPSGF-CⅠ-18 | Coners Ⅰ Cranked tine(down) |
9 | 1800/71 | 820/32 | 300/661 | ||
| Coners Ⅰ Cranked tine(up) |
7 | 680/27 | |||||
| Coners Ⅰ (side) |
4 | 810/32 | |||||
| GLPSGF-CⅠ-21 | Coners Ⅰ Cranked tine(down) |
10 | 2100/83 | 820/32 | 340/749 | ||
| Coners Ⅰ Cranked tine(up) |
8 | 680/27 | |||||
| Coners Ⅰ (side) |
4 | 810/32 |
* Installed two ∮60 hydraulic cylinder.

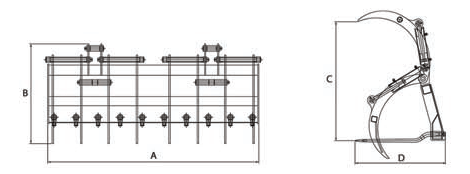

Debris Grapple Fork(Round Wind Type)
| Model | Spear Type | No. of Spear | Width (mm/inch) |
Height (mm/inch) |
Grapple Open(mm/inch) | Spear Length(mm/inch) | Weight (Kgs/Ibs) |
|---|---|---|---|---|---|---|---|
| GLDGFRW-CⅠ-16 | Coners Ⅰ Cranked tine |
9 | 1600/63 | 850/33 | 1092/43 | 820/32 | 240/523 |
| GLDGFRW-CⅠ-18 | Coners Ⅰ Cranked tine |
10 | 1800/71 | 280/617 | |||
| GLDGFRW-CⅠ-21 | Coners Ⅰ Cranked tine |
11 | 2100/83 | 320/705 |
* Installed two ∮60 hydraulic cylinder.
The entire general purpose bucket section is available with either Euro quick release(ISO 23206), bobcat quick release system(SAE J2513) and various attachment dimension.
Also, Available for OEM quick system if you could provide own drawing.
A fully hydraulic hose kit including a male female 1/2 hydraulic quick coupling with cover and 1500mm(5ft) of hydraulic hose which shielded by textile hose cover.
