Green Line's rear blade are easy to mount, easy to operate, and tough
to beat. Engineered and built to withstand the most rugged conditions
and demanding jobs, these true workhorses will increase your
productivity with faster work, less maintenance, easier operation, and
unrivaled durability.
Our rear blade will provide the versatility you need to take on virtually
any job.

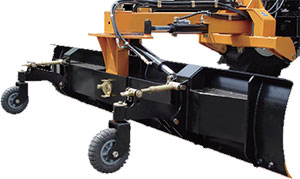

Rear blade for 3 point linkage of tractor.

Green Line's rear blade are designed for maximum performance with minimum down time. Durable, formed moldboards are curved for rigidity and strength. Adjustable blades allow you to adjust the tilt, angle, and offset to match the job. Available in standard, medium and heavy-duty models in lengths ranging from 1650mm(65inch) to 3000(118inch). Whether it’s landscape grading, construction clean-up, or snow removal, rely on our full line of grading blades for years of performance and durability.

20mm(0.78inch) high-carbon reversible cutting edge for long life. Convenient parking stand standard.

  • Rear Blade For 3Point Linkage of Tractor
  • Rear Blade For 3Point Linkage of Tractor

Rear Blade For 3Point Linkage of Tractor

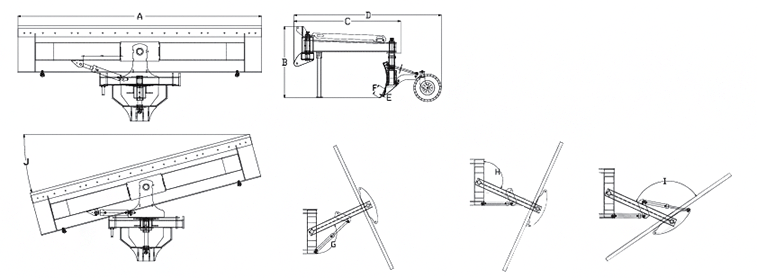

Specification
Model GLHDRB-18 GLHDRB-21 GLHDRB-24 GLHDRB-27
Width
A(mm/inch)
1830(72) 2130(84) 2430(96) 2700(106)
Heigh
B(mm/inch)
1000(39) 1000(39) 1100(43) 1100(43)
Length
C(mm/inch)
1650(65) 1650(65) 1735(68) 1735(68)
Length With Wheel
D(mm/inch)
* * 2395(94) 2395(94)
Thickness of blade
E(mm/inch)
20(0.78) 20(0.78) 20(0.78) 20(0.78)
Width of blade
F(mm/inch)
165(6.5) 165(6.5) 165(6.5) 165(6.5)
Lift angle of frame
G
115˚ 115 115 115
Right angle of frame
H
115˚ 115 115 115
Angle of Blade
I
115˚ 115 121 121
Tilting of Blade
J
18˚ 18 18 18
Weight
Kgs/lbs
