Bale Spear Section
- Home>
- Product>
- Bale Spear Section
- Bale spear (Single, Double, Triple)
- Loader bale spear for handling larger bales.
Triple tapered spears have a forged spear with various length and thickness by conus Ⅰ& Ⅱ. Uprights are required for handling big bales at once./dd>- Designed for use on tractor front end loader and skid steer loader. These attachments require that the skid steer loader and front end loader bucket be removed to install. Ideal for the operator who is moving mid-size or large bales.
- Designed to fit a large number of skid steer loader, compact, utility and agricultural tractor.
- Square Bale fork with bag lift
- Length of spears is 1240mm(49inch) conus Ⅱ and has High frequency hear treatment for enhance tensile strength and hardness.
- Bag lifter position for handle large bag. The bottom main beam is equipped with sleeves for bolt in tines to facilitate easy removal and changing to suit a range of applications and could folding main beam.
- Built to lift, transport and stank round or square bale of organic materials.
- Anti-rollover spear for easy handling square bale.

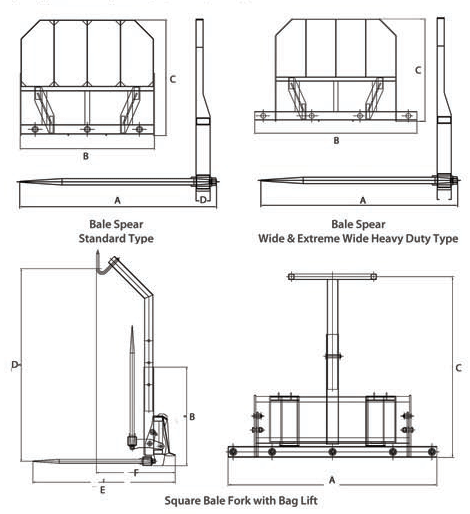

Specification
Bale spear
Standard Type(width guard)
| Item | Model | Spear Type | Spear Length (mm/inch)-A | Width(mm/inch)-B | Height (mm/inch)-C | Frame Length(mm/inch)-D |
|---|---|---|---|---|---|---|
| Single Spear(with two sub-spear) | GLSBS-CⅡ-980 | ConusⅡ | 980/39 | 1418/56 | 1200/47 | 115/5 |
| GLSBS-CⅡ-1240 | 1240/49 | |||||
| GLSBS-CⅡ-1400 | 1400/55 | |||||
| Double Spear | GLDBS-CⅠ-810 | ConusⅠ | 810/32 | |||
| GLDBS-CⅠ-1100 | 1100/43 | |||||
| GLDBS-CⅡ-820 | ConusⅡ | 820/32 | ||||
| GLDBS-CⅡ-980 | 980/39 | |||||
| GLDBS-CⅡ-1240 | 1240/49 | |||||
| GLDBS-CⅡ-1400 | 1400/55 | |||||
| Triple Spear | GLTBS-CⅠ-810 | ConusⅠ | 810/32 | |||
| GLTBS-CⅠ1100 | 1100/43 | |||||
| GLTBS-CⅡ-820 | ConusⅡ | 820/32 | ||||
| GLTBS-CⅡ-980 | 980/39 | |||||
| GLTBS-CⅡ-1240 | 1240/49 | |||||
| GLTBS-CⅡ-1400 | 1400/55 |
Entire Wide Square Bale Spear
Wide Heavy Duty Square Bale Spear(width guard)
| Model | Spear Type | No. of Spear | Spear Length (mm/inch)-A | Width(mm/inch)-B | Height (mm/inch)-C | Frame Length(mm/inch)-D |
|---|---|---|---|---|---|---|
| GLHDWSBS-CⅠ-17 | ConusⅠ | 2 | 1100/43 | 1700/67 | 1200/47 | 115/5 |
| 2 | 810/32 |
Extreme Wide Heavy Duty Square Bale Spear(width guard)
| Model | Spear Type | No. of Spear | Spear Length (mm/inch)-A | Width(mm/inch)-B | Height (mm/inch)-C | Frame Length(mm/inch)-D |
|---|---|---|---|---|---|---|
| GLEHDWSBS-CⅡ-19 | ConusⅡ | 5 | 1240/49 | 1900/75 | 1200/47 | 115/5 |
Square Bale fork with bag lift
| Model | Width(mm/inch) | Height (mm/inch) | Length (mm/inch) | No. of Tine | Weight(kgs/Ibs)-D | |||
|---|---|---|---|---|---|---|---|---|
| no frame | to upper time | to bag lift | with spear | expect spear | ||||
| GLSBFB-CⅡ-17 | 1700/67 | 1120/44 | 1645/65 | 2200/87 | 1520/64 | 895/35 | 4 | 120/265 |
| GLSBFB-CⅡ-19 | 1900/75 | 5 | 140/309 | |||||
* Spear Type - ConersⅡ/Spear Length(mm/inch) -1240(49)
The entire bale spear section is available with either Euro quick release(ISO 23206), bobcat quick release system(SAE J2513) and various attachment dimension.
Also, Available for OEM quick system if you could provide own drawing.
