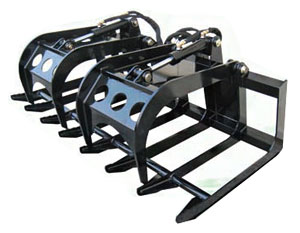

- Heavy Duty Root Grapple
- Heavy duty root grapple has distinctive design provides considerable opportunities to fill the attachment without dropping any object already contained in the bucket for harsh environments, Clearing brush, the removal of debris such as rocks, roots, as well as general site.
- clean-up while leaving the soil at job site. Designed to clamp evenly around load.
- Low profile for improved operator visibility. Rear hitch designed to match own machine.
- Large grapple opening(1197mm/472inch) to accommodate the most demanding jobs.

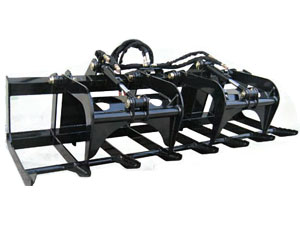

- Compact Root Grapple
- Compact root grapple is very unique attachment on compact and sub-compact tractor for removal of debris as rocks, roots, and general site. clean-ip while leaving the soil at job site.
- Low profile for improved operator visibility.
- Rear hitch designed to match own machine.
- Large grapple opening(756mm/29.8inch) to accommodate the most demanding jobs.

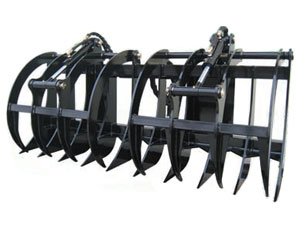

- Heavy Duty Root Rake Grapple
- Root rake grapple is very powerful attachment for farm, industrial, and skid Loaders with widths from 1700mm(67inch) to 2100mm(83inch). Ideal for tree service and handle for wood and brush.
- Heat treated bushings with stress proof pins and root rake tines have high corbon steel face.
- Large grapple opening(1230mm/48.4inch) to accommodate the most demanding jobs.
- Rear hitch designed to match own machine.
- Each grapple is designed to clamp evenly around load being carried. Low profile for improved load visibility.
Specification

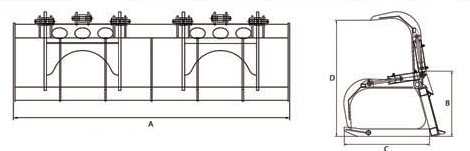

Heavy Duty Root Grapple
| Model | Width (mm/inch) | Height (mm/inch) | Length(mm/inch) | Max. Open (mm/inch) | No.of tines | Weight(kgs/Ibs) |
|---|---|---|---|---|---|---|
| GLHRG17 | 1700/67 | 672/27 | 880/35 | 1197/47 | 7 | 220/441 |
| GLHRG18 | 1800/71 | 8 | 230/507 | |||
| GLHRG19 | 1900/75 | 9 | 260/573 | |||
| GLHRG20 | 2100/83 | 10 | 310/684 |

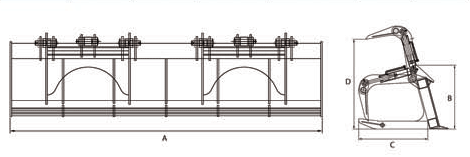

Compact Root Grapple
| Model | Width (mm/inch) | Height (mm/inch) | Depth(mm/inch) | Max. Open (mm/inch) | No.of tines | Weight(kgs/Ibs) |
|---|---|---|---|---|---|---|
| GLCRG15 | 1500/59 | 537/21 | 583/23 | 756/30 | 6 | 120/265 |
| GLCRG17 | 1700/67 | 7 | 140/309 | |||
| GLCRG18 | 1800/71 | 8 | 160/353 |

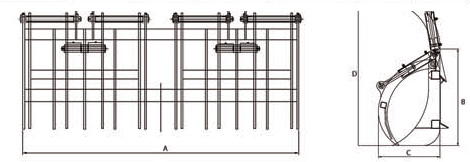

Heavy Duty Root Rake Grapple
| Model | Width (mm/inch) | Height (mm/inch) | Length(mm/inch) | Max. Opening (mm/inch) | No.of tines | Weight(kgs/Ibs) |
|---|---|---|---|---|---|---|
| GLHRRG17 | 1700/67 | 853/36 | 543/22 | 1230/49 | 9 | 240/529 |
| GLHRRG18 | 1800/71 | 10 | 270/595 | |||
| GLHRRG19 | 1900/75 | 11 | 300/662 | |||
| GLHRRG21 | 2100/83 | 12 | 340/750 |
Installed two ∮60 hydraulic cylinder.
The entire root grapple section is available with either Euro quick release(ISO 23206), bobcat quick release system(SAE J2513) and various attachment dimension.
Also, Available for OEM quick system if you could provide own drawing.
A fully hydraulic hose kit including a male female 1/2 hydraulic quick coupling with cover and 1500mm(5ft) of hydraulic hose which shielded by textile hose cover.
