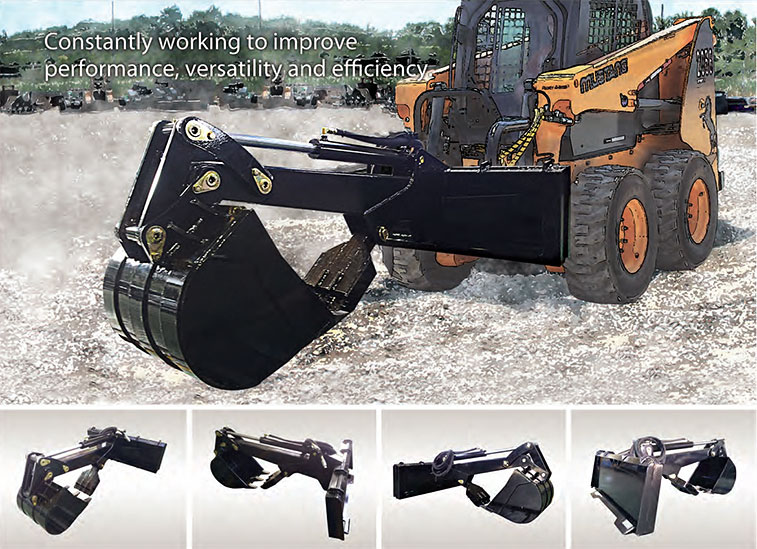

Heavy Duty Fixed Grapple Skidhoe

Our Heavy duty fixed HEAVY DUTY FIXED GRAPPLE SKIDHOE is an excellent tool for digging ditches, removing stumps and digging footings.

With the option of adding a thumb, you can move logs, chunks of cement and most anything else.

Buckets come in sizes of 8", 12", 16", 20"and 24". With 76" of digging depth, it is an aggressive digging machine.

This extremely versatile combo backhoe & grapple attachment mounts quickly and easily.

The unique large capacity bucket with retractable thumb allows for land clearing, stump removal, brush piling, log handling and much more.

Professionally built to heavy-duty industrial standards. Suitable for commercial, industrial and construction uses, yet practical and affordable for the property owner.

  • - Heavy duty pins and bushings with grease points.
  • - Durable Powder Coat Finish.
  • - Optional thumb attachment
  • - Digging depth of 76"
  • - Available Sizes: 8", 12", 16", 20", 24"

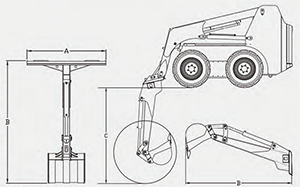

Specification

Specification
Description GLFSH20
A Overall width 1219mm/48inch
B Overall reach 1905mm/75inch
C Digging depth 1930mm/76inch
Digging force 1587kgs/3,500Ibs
Overall weight(Approx.) 180kgs/396Ibs
Hydraulic cylinder specification
Bore 70mm/2.75inch
Strock 443mm/17.44inch
Rod diameter 35mm/1.38inch

* Specifications and designs are subject to change without notice.
