HD Full size backhoe for 3pt linkage of tractor

Green Line‘s Backhoes are ideal for farming, light construction and landscaping for uses that include golf courses, nurseries, utility companies and cemeteries. our backhoes are as versatile as they are powerful and reliable.

From tractor to the innovative series and remains an industry leader providing reliable backhoes for both commercial and residential use.

Engineered for maximum strength and durability, Green Line backhoes are constructed of high-grade steel that delivers more powerful digging forces while requiring less maintenance. Even though our backhoes are built to be tough at the job site, they are designed to be easy on the operator. From comfortable seating and spacious footrests, to precise, fluid movements and smooth operation.

Available in 3-point hitch of tractor; makes it easy to install when trenching projects are required and increase your tractor's versatility, quality, strength and value. The large operator area allows for easy entry and comfortable operation.

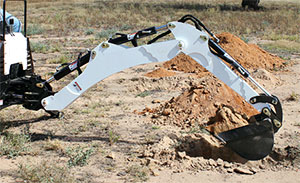

  • Backhoe For 3Point Linkage of Tractor

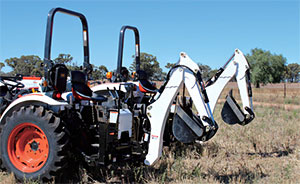

  • Backhoe For 3Point Linkage of Tractor

Feature of Green Line's backhoe for 3 point linkage of tractor.

  • - Reinforcing Plates in High-Stress Areas
  • - 3-point Mount for Rigid Connection.
  • - Regular-and Commercial-Duty Buckets with Replaceable Tooth Tips.
  • - Streamline Designed Stabilizers.
  • - Reinforced Buckets
  • - High Ground Clearance for Easy Transporting
  • - Range of Mounting Options
  • - Heavy duty powerful hydraulic cylinder.
  • - Greaseable end, hardened pins with bushings–. ease of lubrication and extended life
  • - Easy-fit and dismount of 3 point linkage mount.
  • - Available various painting color for original tractor color.

Tipping weight will always be more than double than the rated working range.

Keep in Mind the Backhoe will always be hooked to the subframe and will not be lifted by the hydraulics.

Engineered for maximum strength and durability, Green Line Backhoes are constructed of high-grade steel that delivers more powerful digging forces while requiring less maintenance.

Yet, even though our backhoes are built to be tough at the job site, they are designed to be easy on the operator.

From comportable seating and spacious footrests, to precise, fluid movements and smooth operation.

  • For skid steer loader
  • For tractor

Performance Feature

Regular-and Commercial-Duty Buckets with Replaceable Tooth Tips.

Streamline Designed Stabilizers.

Performance Feature

Optional Mechanical Thumb for Pick-Up and Placement of Objects. Optional hydraulic thumb

  • - Reinforcing Plates in High-Stress Areas
  • - 3-point Mount for Rigid Connection.
  • - Regular-and Commercial-Duty Buckets with Replaceable Tooth Tips.
  • - Streamline Designed Stabilizers.
  • - Reinforced Buckets
  • - High Ground Clearance for Easy Transporting
  • - Range of Mounting Options
  • - Heavy duty powerful hydraulic cylinder.
  • - Greaseable end, hardened pins with bushings–. ease of lubrication and extended life
  • - Easy-fit and dismount of 3 point linkage mount.
  • - Available various painting color for original tractor color.

Performance Feature

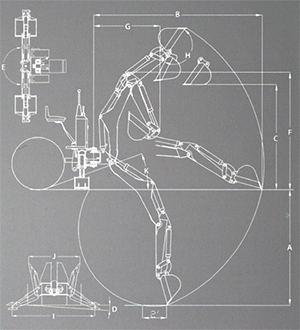

Specification
Model GLFSBHT-40 GLFSBHT-50 GLFSBHT-60
Digging Depth(two foot flot botton) 1940 mm / 76.4 inch 2280 mm / 89.9 inch 2600 mm / 94.5 inch
Reach form center line of swing pivot 2680 mm / 105.5 inch 2950 mm / 116.1 inch 3265 mm / 128.5 inch
Loading height(vucket at 60˚) 1615 mm / 63.6 inch 1840 mm / 72.4 inch 2040 mm / 80.3 inch
Maximum leveling angle 10˚ 10˚ 10˚
Swing Arc 180˚ 180˚ 180˚
Transport height(maximum) 1856 mm / 73.1 inch 2030 mm / 79.9 inch 2290 mm / 90.2 inch
Transport overhang 1105 mm / 43.5 inch 1160 mm / 45.7 inch 1105 mm / 45.3 inch
Bucket rotation 172˚ 172˚ 172˚
Stabilizer spread(down position) 1950 mm / 76.8 inch 1950 mm / 76.8 inch 1950 mm / 76.8 inch
Stabilizer spread(up position) 1250 mm / 49.2 inch 1250 mm / 49.2 inch 1250 mm / 49.2 inch
Angle departure 21˚ 21˚ 21˚
Shipping weight-backhoe 357 kg / 785 lbs 390 kg / 855 lbs 445 kg / 980 lbs
Bucket digging force 1305 kg / 2875 lbs 1215 kg / 2675 lbs 1600 kg / 3550 lbs
Dipperstick digging force 793 kg / 1744 lbs 955 kg / 2105 lbs 1000 kg / 2225 lbs
Operating pressure 170 bar / 2000 psi 170 bar / 2000 psi 180 bar / 2000 psi
Specification
Cylinder Bore DIA Retracted length Stroke Rod DIA
Boom 70 / 2.756 620 / 24.409 425 / 16.733 40 / 1.575
Bucket 60 / 2.363 615 / 24.213 427 / 16.811 35 / 1.378
Dipperstick 60 / 2.363 615 / 24.213 427 / 16.811 35 / 1.378
Swign 60 / 2.363 145/5.709 175 / 6.89 35 / 1.378
Stabilizer 60 / 2.363 446 / 17.559 262 / 10.315 35 / 1.378

* Unit. mm/inch

Specification
Bucket Teeth Q'ty Struck capacity Heaped capacity Shipping weight
9"Bucket 3 0.73 cu.ft. 0.87 cu.ft. 46 lbs
12"Bucket 3 1.01 cu.ft. 1.24 cu.ft. 56 lbs
16"Bucket 3 1.38 cu.ft. 1.76 cu.ft. 64 lbs
18"Bucket 4 1.56 cu.ft. 2.02 cu.ft. 70 lbs
24"Bucket 5 2.11 cu.ft. 2.82 cu.ft. 94 lbs
36" Muck Bucket 6 2.78 cu.ft. 4.00 cu.ft. 114 lbs

* Specifications and designs are subject to change without notice.
