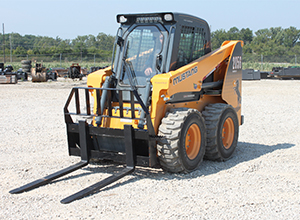

- General pallet fork-Manual type
- A wide fork rail allows for easy movement of forks for a large range of applications.
Heavy duty back guard and frame are strong welded and have a powder coat finish.
See-through back guard allows for excellent visibility of the tines and prevents objects from sliding backward.
Installed step for convenience of operator and each tine is locked into position with a knob and lever which locates in a slot on the fork rail.
- Power pallet fork-Hydraulic type
- 1500mm(5ft) hydraulic hose with male & femail 1/2 hydraulic quick coupler install on power pallet fork including two high quality hydraulic cylinder (50(1.9/inch) diameter).
- Equalizing adjustable tine spacing by power twin hydraulic cylinder.

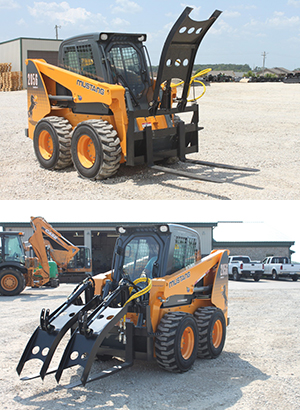

- Heavy duty pallet fork grapple
(single and double arm) - Available for most makes and models of loader backhoes, tele handlers, compact wheel loaders and tractor loaders.
- Supplied with 1220mm(48inch) length of forks and grapple arms.
- Grapple arms open to 1688mm(67inch) height to accept tall loads or pallets.
- Installed two 060 hydraulic cylinder with 3/8 hydraulic hose
- Forklift forks are High Carbon Steel for added strength & durability base on ISO 2330&2328.
- Available for most models of quick couplers or pln-on mounts depends on your machine.
- Pallet fork with bag lift
- Option of bag lift for pallet fork is welding on the frame using the twin square tube(75mm/2.95inch) with hook(20/0.79inch) and height is the 1800mm/6ft.
It is very easy to control large bag for safety handling
- Pallet fork tine extensions
- Optional pallet fork tine extensions(Base material thickness is 6mm/0.34inch)
Available is 1500mm(5ft), 1700mm(5.6ft), 1800mm(6ft), 1900mm(6.2ft)
Specification
Heavy Duty Pallet Fork
| Item | Compact | Standard | Standard Auto | Heavy Duty | Heavy Duty |
|---|---|---|---|---|---|
| Below 60hp | 50~80hp | 50~80hp | Over 80hp | Over 80hp~ | |
| Model | GLPF-CP | GLPF-ST | GLPF-ST | GLHPF-HD | GLHPF-HDA |
| Width | SAE Quick hitch type:1210mm(48inch) ISO Quick hitch type : 1318mm(52inch) | ||||
| Frame Height | 910mm(34inch) | ||||
| Total Height | 950mm(38inch) | ||||
| Time Length | 1070mm(42inch) | 1220mm(48inch) | 1220(48inch) | ||
| Time Thickness | 32mm(1.25inch) | 32mm(1.25inch) | 40mm(1.57inch) | ||
| Time Width | 100mm(4inch) | ||||
| Frame Weight | 100kgs(220Ibs) | 100kgs(220Ibs) | 120kgs(265Ibs) | 100kgs(220Ibs) | 120kgs(265Ibs) |
| Total Weight | 196kgs(388Ibs) | 184kgs(405Ibs) | 204kgs(450Ibs) | 208kgs(507Ibs) | 230kgs(490Ibs) |
| Max. load capacity | 1500kgs(3300Ibs) | 2500kgs(5500Ibs) | |||
| Type of Time | Class Ⅱ Hook type(406.4mm/16inch) | ||||
* Installed two ∮40 hydraulic cylinder for power pallet fork.

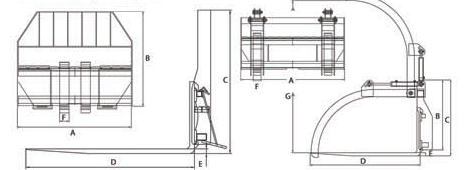

Heavy Duty Pallet Fork Grapple(Single & Double Arm)
| Item | Standard(50~80hp) | Heavy Duty(up 80hp~) | ||
|---|---|---|---|---|
| Single arm | Double arm | Single arm | Double arm | |
| Model | GLPFG-STSA | GLPFG-STDA | GLPFG-HDSA | GLPFG-HDDA |
| Width | SAE Quick hitch type:1210mm(48inch) ISO Quick hitch type : 1318mm(52inch) | |||
| Frame Height | 775mm(31inch) | |||
| Total Height | 820mm(33inch) | |||
| Time Length | 1220mm(48inch) | 1220mm(48inch) | ||
| Time Thickness | 32mm(1.25inch) | 40mm(1.57inch) | ||
| Time Width | 100mm(4inch) | |||
| Max. Opening | 1688mm(67inch) | |||
| Total Weight | 225kgs(496Ibs) | 265kgs(584Ibs) | 250kgs(551Ibs) | 290kgs(639Ibs) |
| Max. load capacity | 1500kgs(3300Ibs) | 2500kgs(5500Ibs) | ||
| Type of Time | Class Ⅱ Hook type(406.4mm/16inch) | |||
* Installed two ∮60 hydraulic cylinder

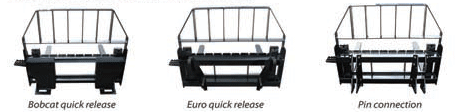

The entire pallet fork section is available with either Euro quick release(ISO 23206), bobcat quick release system(SAE J2513) and various attachment dimension.
Also, Available for OEM quick system if you could provide own drawing.
A fully hydraulic hose kit including a male female 1/2 hydraulic quick coupling with cover and 1500mm(5ft) of hydraulic hose which shielded by textile hose cover.
