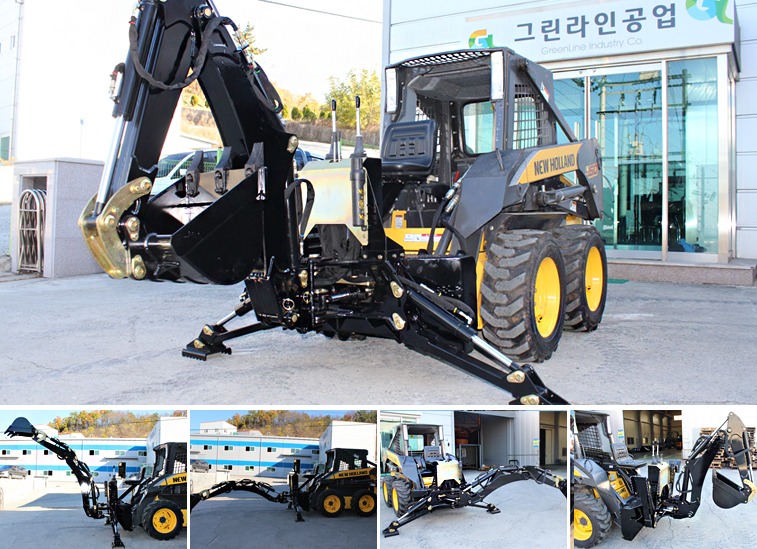

Heavy Duty Full Size Backhoe

When it comes to landscaping and excavating, start the job right with the Quick skid steer loader mo니nted backhoe attachment that digs deeper and reachers farther.

The versatile curved-boom backhoe attachment that fits your skid ster loader, 3 point linkage tractor and your property.

The Green니ne skid steer loader mounted Backhoe attachment is compatible with the following brands: CAT, John Deere, Case, New Holland, Bobcat, Thomas, Gehl, Mustang, JCB, Komatsu, Caterpillar / CAT, Volvo, Doosan / Daewoo, Case, John Deere, ASV Posi-Track, Takeuchi, Kanga, Ditch Witch, Vermeer, Toro,Cheatah, Boxer, PowerTrack, Ramrod, MultiTrack, Swinger, Yanmar, Kubota.

They have been producing backhoes for the major manufacturers for many years.

Green Line has a committment to cxccllcncc that these manufacturers rccognizc and want to call their own.

We are simply the best skid steer backhoes available and the fact that you are able to buy them online from us is a winning combination for everyone.

Green Line Backhoes are the competitive of all add on Backhoe Attachments,whether for a Skid Steer Loader or Tractor.

For Strength, Durability, Reliability and Built for Everyday Commercial Use.

Tipping weight will always be more than double than the rated working range.

Keep in Mind the Backhoe will always be hooked to the sub-frame and will not be lifted by the hydraulic

Engineered for maximum strength and durability, Green Line backhoes are constructed of high-grade steel that delivers more powerful digging forces while requiring less maintenance.

Yet, even though our backhoes are built to be tough at the job site, they are designed to be easy on the operator.

From comfortable seating and spacious footresis, to precise, fluid movements and smooth operation.

  • for skid steer loader
    for skid steer loader
  • for tractor
    Zinc coating

Performance Features

Reinforcing Plates in High-Stress Areas skid steer loader mount for Rigid Connection.

Regular-and Commercial-Duty Buckets with Replaceable Tooth Tips.

Streamline Designed Stabilizers.

Performance Features

Optional Mechanical Thumb for Pick-Up and Placement of Objects.

Optional hydraulic thumb

Feature

  • - High Quality Cylinders and Heavy-Duty Booms.
  • - Reinforced Buckets and Welded Cutting Edges.
  • - High Ground Clearance for Easy Transporting.
  • - Range of Mounting Options.
  • - Largest Operators' Station in Class.
  • - Standard swing speed control.
  • - Best bucket digging force for a four-bar imkogo backhoe in its class.
  • - long reach from the swing pom provides the ability to place material further from the excavattogtr id allows for fewer moves.
  • - High capacity buckets provide more volum- dual cylinder swing provides maximum power.
  • - Cushioned swing brings the backhoe to gentle stop at each of the swing arc.
  • - High clearance swing post allows operation where clearance is critical
  • - 180˚Dual-cylinder swing with internal hydraulic cushioning provides smooth operation and maximum power where it is needled.

Features

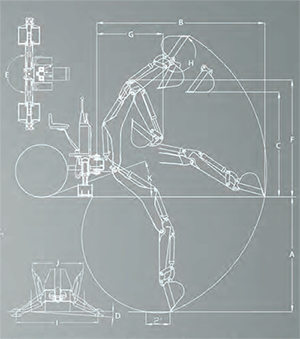

HD Full Size Backhoe For Skid Steer Loader Specification

Specification
Model GLFSBHS-40 GLFSBHS-50 GLFSBHS-60
Digging Depth(two foot flat bottom) A 1940mm/76.4inch 2280mm/89.8inch 2600mm/94.5inch
Reach from center line of swing pivot B 2680mm/105.5inch 2950mm/116.1inch 3265mm/128.5inch
Loading height(bucket at 60˚) C 1615mm/63.6inch 1840mm/72.4inch 2040mm/80.3inch
Maximum leveling angle D 10˚ 10˚ 10˚
Swing Arc E 180˚ 180˚ 180˚
Transport height(maximum) F 1856mm/73.1inch 2030mm/79.9inch 2290mm/90.2inch
Transport overhang G 1105mm/43.5inch 1160mm/45.7inch 1150mm/45.3inch
Bucket rotation H 172˚ 172˚ 172˚
Stablizer spread (down position) I 1950mm/76.8inch 1950mm/76.8inch 1950mm/76.8inch
Stablizer spread(up position) J 1250mm/49.2inch 1250mm/49.2inch 1250mm/49.2inch
Angle departure K 21˚ 21˚ 21˚
Shipping weight-backhoe 357kg/785Ibs 390kg/855Ibs 445kg/980Ibs
Bucket digging force 1305kg/2875Ibs 1215kg/2675Ibs 1600kg/3550Ibs
Dipperstick digging force 793kg/1744Ibs 955kg/2105Ibs 1000kg/2225Ibs
Operating pressure 170bar/2000psi 170bar/2000psi 180bar/2150psi
Specification
Cylinder Bore DIA Retracted length Stroke Rod DIA
Boom 70/2.756 620/24.409 425/16.733 40/1.575
Bucket 60/2.363 615/24.213 427/16.811 35/1.378
Dipperstick 60/2.363 615/24.213 427/16.811 35/1.378
Swing 60/2.363 145/5.709 175/6.89 35/1.378
Stabilizer 60/2.363 446/17.559 262/10.315 35/1.378

* Unit. mm/inch

Specification
Bucket Teeth Q'ty Struck capacity Heaped capacity Shipping weight
8" Bucket 2 0.73 cu.ft. 0.87 cu.ft. 30KGS/66LBS
12" Bucket 3 1.01 cu.ft. 1.24 cu.ft. 40KGS/110LBS
16" Bucket 3 1.38 cu.ft. 1.76 cu.ft. 50KGS/132LBS
20" Bucket 4 1.56 cu.ft. 2.02 cu.ft. 70KGS/154LBS
24" Bucket 5 2.11 cu.ft. 2.82 cu.ft. 80KGS/176LBS

* Specifications and designs are subject to change without notice.
