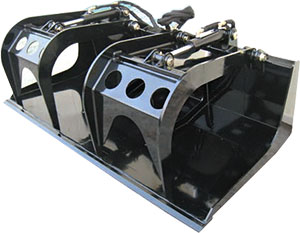

- Heavy Duty Scrap Grapple Bucket
- Scrap grapple bucket is a strong and very versatile attachment for harsh environments, including the removal of building, forestry and scrap-yard debris
- Cutting edge(16mm/0.67inch) of high strong tensile steel cutting edge standard.
- Each grapple is designed to clanp evenly around being carried.
- Low profile for improved load visibility.
- Large grapple opening(1250mm/49.2inch) to accomodate the most demanding jobs.
- Rear hitch designed to match own machine.

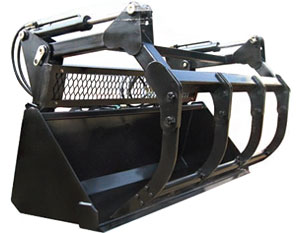

- Heavy Duty Manure Grapple Bucket
- Manure grapple bucket integrated into the bucket design. 16mm(0.67inch), S45C High tensile steel has been used on bucket edges.
- Designed by ALL CAD system with laser cutting
- All buckets are MIG welded for optimum strength and a smooth clean apperence.
- The manure grapple bucket has been designed to handle loose or fine chop silage and is ideal for cleaning up other materials such as manure and silage.
- Twin hydraulic cylinders bring excellent clamping and mesh style spill screen to provide best visibility.
Specification

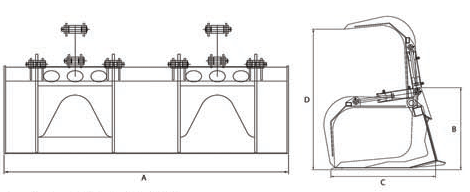

Heavy Duty Scrap Grapple Bucket
| Model | Width (mm/inch)-A | Height (mm/inch)-B | Depth(mm/inch)-C | Max. Open (mm/inch)-D | Weight(kgs/Ibs) |
|---|---|---|---|---|---|
| GLHSGB17 | 1720/68 | 730/29 | 935/37 | 1251/49 | 260/573 |
| GLHSGB18 | 1820/72 | 290/639 | |||
| GLHSGB19 | 1920/76 | 310/684 | |||
| GLHSGB20 | 2120/84 | 350/772 |

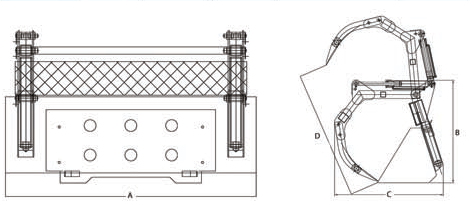

Heavy Duty Manure Grapple Bucket
| Model | Width (mm/inch)-A | Height (mm/inch)-B | Depth(mm/inch)-C | Max. Open (mm/inch)-D | Weight(kgs/Ibs) |
|---|---|---|---|---|---|
| GLMGB17 | 1720/68 | 847/34 | 1020/40 | 1210/48 | 250/550 |
| GLMGB18 | 1820/72 | 260/572 | |||
| GLMGB19 | 1920/76 | 290/638 | |||
| GLMGB20 | 2120/84 | 300/660 |
Installed two ∮60 hydraulic cylinder
The entire grapple bucket section is available with either Euro quick release(ISO 23206), bobcat quick release system(SAE J2513) and various attachment dimension.
Also, Available for OEM quick system if you could provide own drawing.
A fully hydraulic hose kit including a male female 1/2 hydraulic quick coupling with cover and 1500mm(5ft) of hydraulic hose which shielded by textile hose cover.
