Wide Heavy Duty 4in1 Bucket

Our Heavy duty fixed HEAVY DUTY FIXED GRAPPLE SKIDHOE is an excellent tool for digging ditches, removing stumps and digging footings.

With the option of adding a thumb, you can move logs, chunks of cement and most anything else.

Buckets come in sizes of 8", 12", 16", 20"and 24". With 76" of digging depth, it is an aggressive digging machine.

This extremely versatile combo backhoe &grapple attachment mounts quickly and easily.

The unique large capacity bucket with retractable thumb allows for land clearing, stump removal, brush piling, log handling and much more.

Professionally built to heavy-duty industrial standards. Suitable for commercial, industrial and construction uses, yet practical and affordable for the property owner.

  • - Heavy duty pins and bushings with grease points.
  • - Durable Powder Coat Finish.
  • - Optional thumb attachment
  • - Digging depth of 76"
  • - Available Sizes: 8", 12", 16", 20", 24"

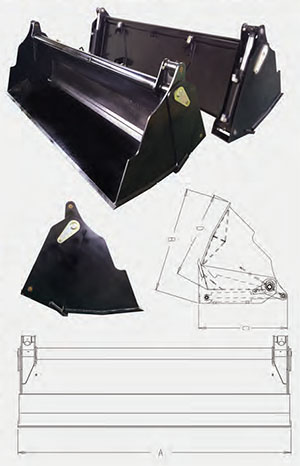

Specification

Specification
Bucket Model GLHDB-18 GLHDB-19 GLHDB-21 GLHDB-24
Bucket width(A) 1820mm/72inch 1920mm/76inch 2120mm/84inch 2420mm/95inch
Bucket weight 308kgs/679Ibs 325kgs/716Ibs 345kgs/760Ibs 370kgs/815Ibs
Length(B) 860mm/34inch
Height(C) 780mm/30.7inch
Depth(D) 620mm/24.4inch
Bucket open 870mm/34.2inch
Struck capacity 0.32㎥/0.41yd3 0.32㎥/0.44yd3 0.37㎥/0.48yd3 0.42㎥/0.53yd3
Rated capacity 0.40㎥/0.52yd3 0.43㎥/0.56yd3 0.46㎥/0.60yd3 0.50㎥/0.64yd3
Optional teeth Yes

* Specifications and designs are subject to change without notice.
